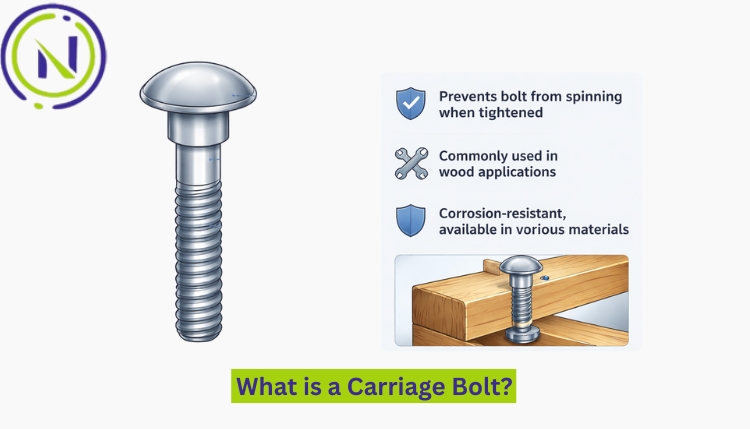

What Is a Carriage Bolt? Definition, Types, Uses, and Benefits

A carriage bolt is a type of fastener designed with a smooth, rounded head and a square neck beneath the head. This unique design prevents the bolt from rotating when tightened, allowing secure fastening without the need to hold the bolt head in place. Carriage bolts are commonly used in applications where a clean finish, strong grip, and tamper resistance are required.

At Neelkamal Fasteners, carriage bolts are manufactured to meet industrial standards, ensuring strength, dimensional accuracy, and long-term performance across various applications.

Structure and Design of a Carriage Bolt

A carriage bolt consists of three main parts: the head, the neck, and the threaded shank. The head is dome-shaped and smooth, giving a neat appearance and reducing the risk of snagging or injury. Directly below the head is a square or ribbed neck, which locks into the material when installed. This feature prevents the bolt from spinning while the nut is tightened from the opposite side.

The threaded shank allows for secure engagement with a nut and washer, creating a strong and stable joint.

How Does a Carriage Bolt Work?

When a carriage bolt is inserted into a pre-drilled hole, the square neck bites into the material, especially wood or softer metals. As the nut is tightened, the square neck embeds itself firmly, stopping the bolt from rotating. This makes installation easier and faster, particularly in situations where access to the bolt head is limited.

The smooth head also provides a tamper-resistant finish, as it cannot be easily gripped with standard tools.

Looking for high-quality SS Carriage Bolts? Contact Neelkamal Alloys LLP today for the best prices and bulk orders!

📞 Call Us: +91 9833022336

Common Types of Carriage Bolts

Carriage bolts are available in different designs and materials to suit various applications.

Standard carriage bolts are the most common type, used mainly in wood-to-wood or wood-to-metal connections. Short neck carriage bolts are designed for thinner materials where a standard neck length is not required. Ribbed neck carriage bolts offer improved grip in metal applications, providing better resistance to rotation.

Carriage bolts are also manufactured in different materials such as carbon steel, stainless steel, and alloy steel, depending on strength and corrosion resistance requirements.

Materials Used in Carriage Bolts

Carbon steel carriage bolts are widely used for general construction and industrial purposes due to their strength and cost-effectiveness. Stainless steel carriage bolts, such as SS 304 and SS 316, are preferred in corrosive environments because of their excellent resistance to rust and oxidation.

For heavy-duty applications, alloy steel carriage bolts are used, offering enhanced tensile strength and durability under high loads and stress.

Applications of Carriage Bolts

Carriage bolts are used across a wide range of industries due to their secure fastening and clean appearance.

In construction, they are commonly used in wooden structures, fencing, decking, and framing. In industrial applications, carriage bolts are used for assembling machinery, equipment frames, and metal structures. They are also widely used in furniture manufacturing, playground equipment, and agricultural machinery.

Their tamper-resistant design makes them ideal for public installations and outdoor structures.

---

Advantages of Using Carriage Bolts

One of the biggest advantages of carriage bolts is their anti-rotation feature, which simplifies installation and maintenance. The smooth head provides a neat and professional finish while improving safety. Carriage bolts also offer strong load-bearing capacity and long service life when manufactured with quality materials.

They are suitable for both indoor and outdoor use and are available in a wide range of sizes and materials to meet different application requirements.

Standards and Specifications

Carriage bolts are manufactured according to international standards such as ASTM, DIN, and ISO. These standards ensure consistent dimensions, thread accuracy, and mechanical properties. Choosing standard-compliant carriage bolts ensures compatibility and reliability in critical applications.

Neelkamal Fasteners supplies carriage bolts that meet these global quality standards.

Why Choose Neelkamal Fasteners for Carriage Bolts?

Neelkamal Fasteners is a trusted manufacturer and supplier of high-quality carriage bolts for industrial, construction, and engineering applications. Our carriage bolts are produced using premium raw materials and undergo strict quality checks to ensure performance and reliability.

We offer:

• Wide range of sizes and materials
• Custom manufacturing as per drawings and specifications
• Consistent quality and competitive pricing
• Reliable supply and timely delivery

Conclusion

A carriage bolt is a versatile and reliable fastening solution known for its smooth head, anti-rotation design, and strong holding power. Whether used in construction, industrial equipment, or outdoor installations, carriage bolts provide secure and long-lasting performance. With precision-engineered products and a commitment to quality, Neelkamal Fasteners delivers carriage bolts that meet the demands of modern applications.
